Sinpo South Shipyard: SLBM Test Not Imminent; Unknown Shipbuilding Program Underway

A 38 North exclusive with analysis by Joseph S. Bermudez Jr.

Commercial satellite imagery of North Korea’s Sinpo South Shipyard from September 21 shows ongoing activity at the facility that indicates:

  • The netting previously present at the SINPO-class[1] experimental ballistic missile submarine (SSBA) on  August 7 has been removed, indicating that whatever work was being conducted is now complete;
  • The SINPO-class submarine and submersible missile test stand barge remain in the same positions in the secure boat basin as observed last month;
  • There are no activities suggesting either previous or forthcoming ejection tests at the facility’s test stand;
  • Given the continued movement of components in the parts yards, a shipbuilding program is probably underway although the type of vessel remains unknown; and
  • Two heavy-lift barge cranes are working on a submerged object just off the main construction hall’s launching ramp. While the nature of the object is unclear, what is visible suggests a sunk mother ship or small submarine.

While there is growing concern that the North may be planning a submarine-launched ballistic missile (SLBM) test in the near future, the current imagery does not indicate an imminent test. The SINPO-class submarine, submersible test stand barge and nearby test stand, however, appear capable of supporting a test at any time of Pyongyang’s choosing.

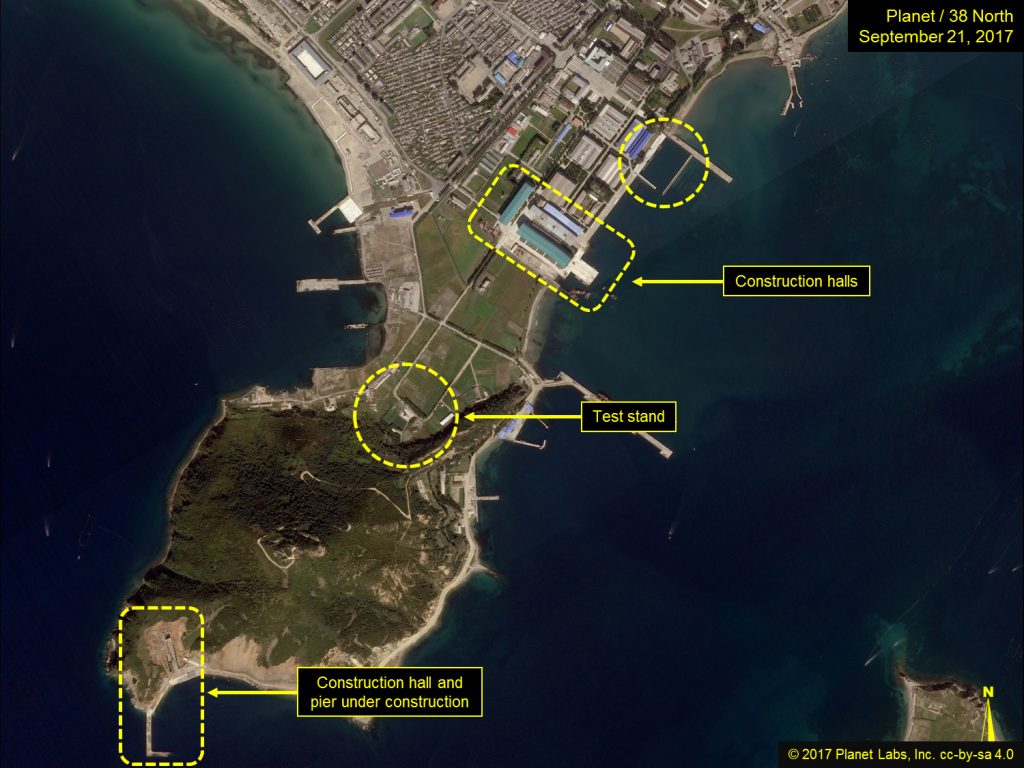

Figure 1. Overview of Sinpo South Shipyard.

Image © 2017 Planet Labs, Inc. cc-by-sa 4.0

SINPO-class Submarine

The netting suspended over the SINPO-class submarine (SSBA) observed last month is no longer present, indicating that whatever work was being conducted on the vessel has been completed.[2] The nature of such work is, however, unknown. Both the submarine and submersible missile test stand barge remain berthed at the same positions in the secure boast basin as noted in our August 7 report, suggesting, without offering real proof, that they have not left port. No activity is observed on the dock adjacent to the submarine or test stand barge, none of the commonly seen support vessels are present in the boat basin and the floating security barrier remains present at the entrance to the boat basin. This relatively tranquil scene notwithstanding, both the submarine and test stand barge could be put to sea to conduct new SLBM tests at relatively short notice.

Figure 2. SINPO-class Submarine and test stand barge remain at the secure boat basin.

Image © 2017 Planet Labs, Inc. cc-by-sa 4.0

Test Stand Developments

No new activity is noted at the static test stand used for Pukguksong-1 SLBM launch systems verification and pop-up and prototype testing since 2014.[3] At the test stand, the service tower remains in place and there are no indications of the ejection tests reported to have taken place during late-July or early August or of any forthcoming ejection tests. Additional ejection test should, however, be expected in the future for further development of the Pukguksong-1, a potential Pukguksong-3, or other future SLBMs.

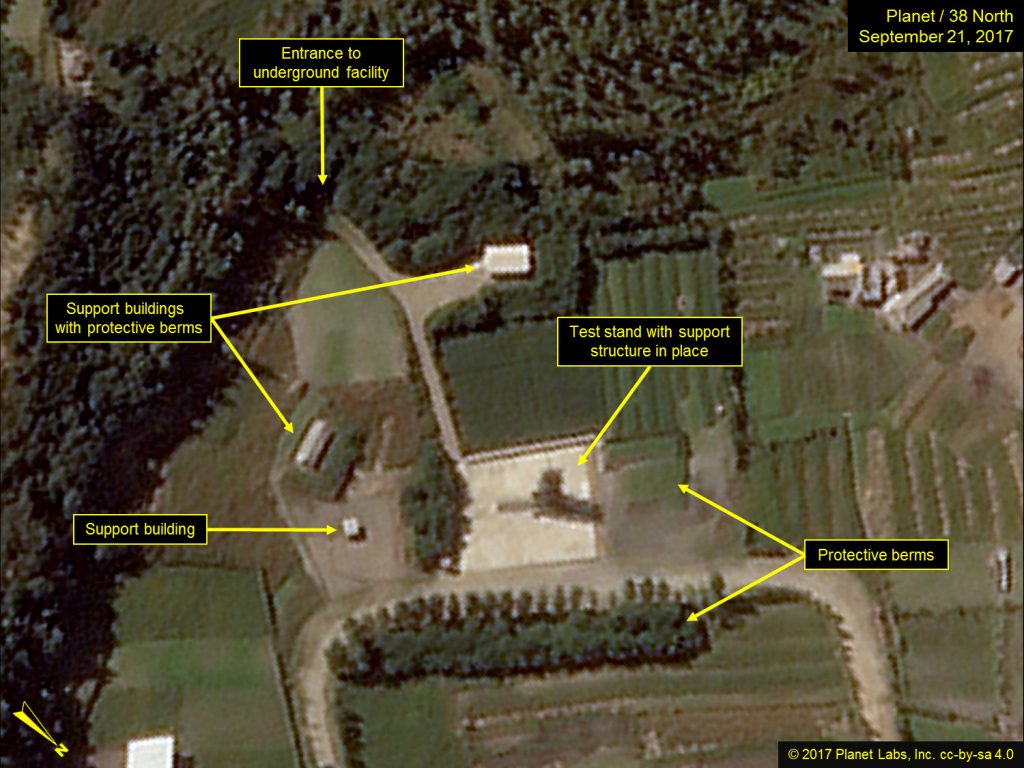

Figure 3. No new activity observed at the test stand.

Image © 2017 Planet Labs, Inc. cc-by-sa 4.0

Shipbuilding Program

During this year, the rail-mounted tower and gantry cranes at the construction hall’s parts storage yards continue to be re-positioned, as is the case with the rail-mounted transfer table that is visible in the present image. Additionally, the contents of the storage yards have continued to change. All this activity suggests an ongoing shipbuilding program of some type. While the Sinpo South Shipyard has historically been involved in the construction or repair of submarines, infiltration mother ships, small combatants and hovercraft, it is not apparent what type of shipbuilding program is being pursued.

Two heavy-lift barge cranes are working on a submerged object just off the main construction hall’s launching ramp. While the nature of the object is unclear, what is visible suggests a sunk mother ship or small submarine.

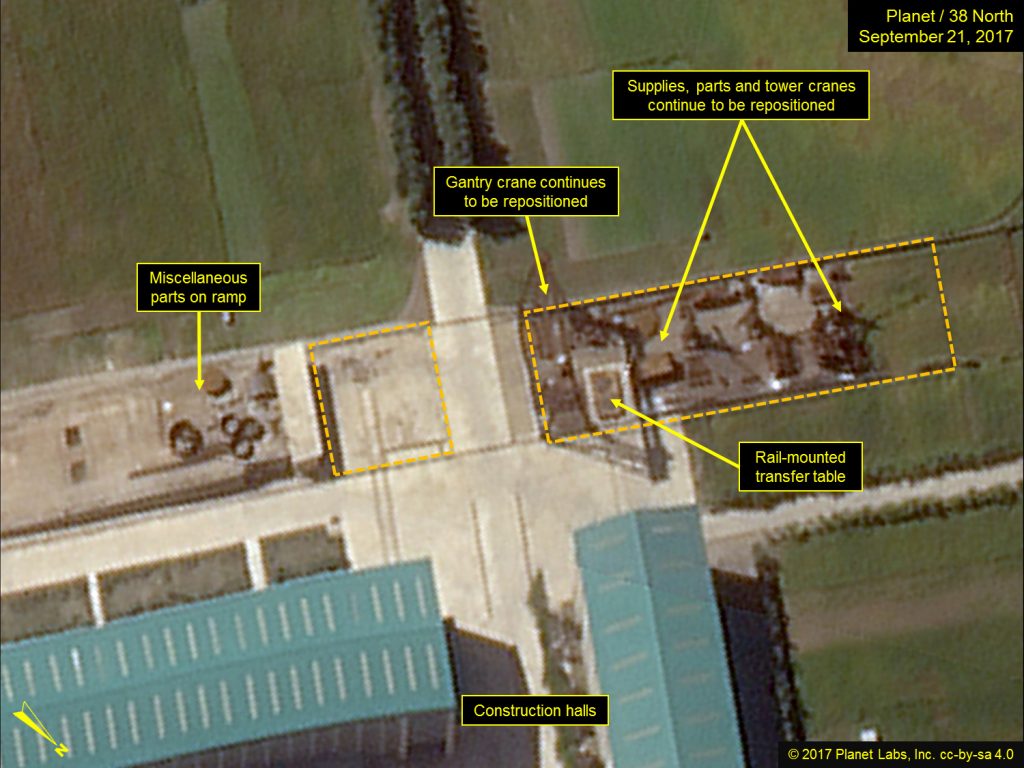

Figure 4. Movement of cranes and parts indicate ongoing shipbuilding program.

Image © 2017 Planet Labs, Inc. cc-by-sa 4.0

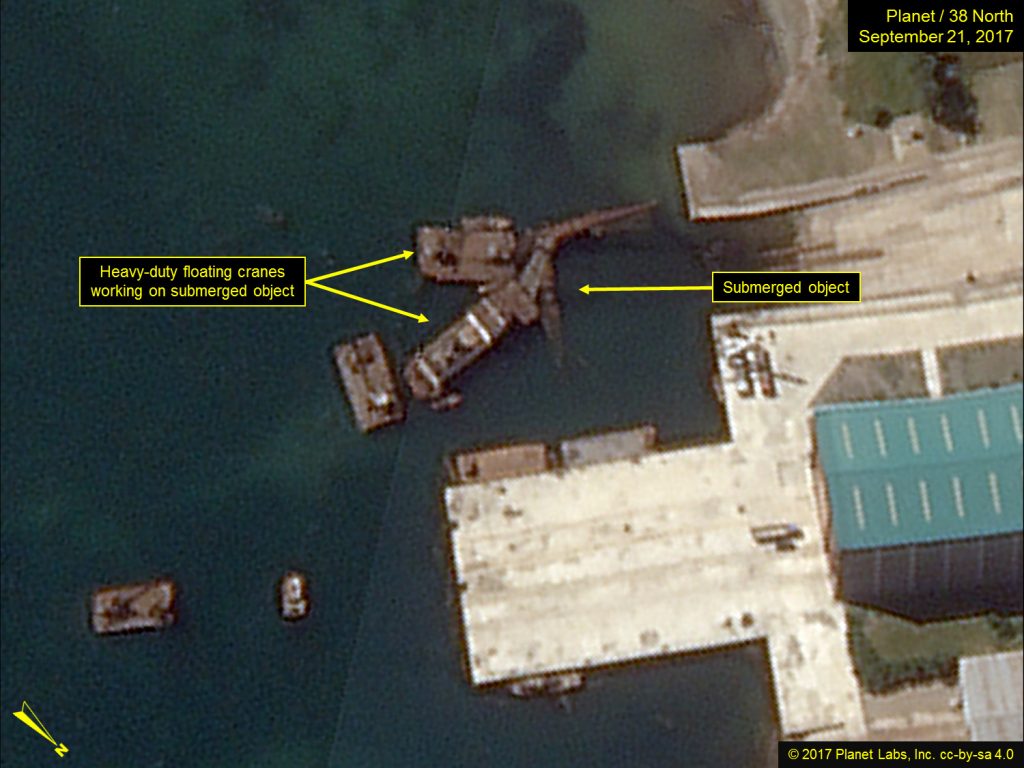

Figure 5. Cranes working on submerged object near the construction hall.

Image © 2017 Planet Labs, Inc. cc-by-sa 4.0

Additional Construction Activity

The erection of a new construction or maintenance hall on the southern tip of the Yuktaeso-ri (Sinpo) Peninsula, which began in 2012, has proceeded very slowly through 2016 and 2017. One of the few notable changes has been the modest extension of the L-shaped pier to approximately 225 meters long. The positioning and construction methods of the new hall suggest that when it is completed, it may be covered with earth to provide protection from possible attack. This, in turn, suggests a potential use in support of future submarine operations.

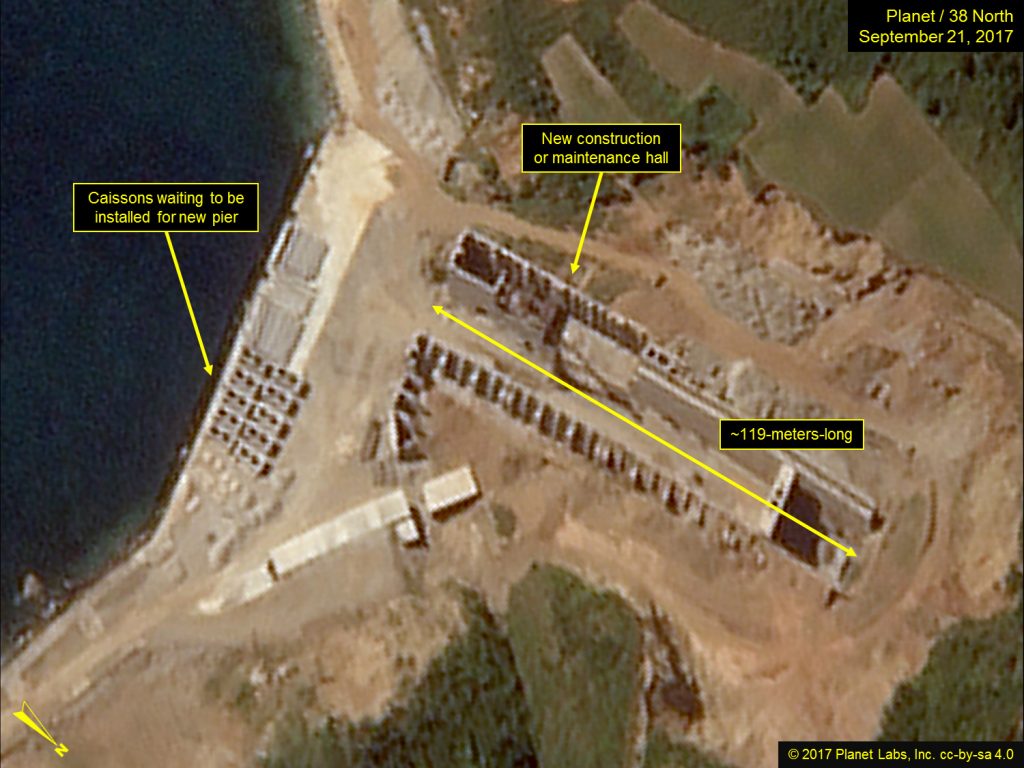

Figure 6. Construction work of new construction or maintenance hall continues at slow pace.

Image © 2017 Planet Labs, Inc. cc-by-sa 4.0

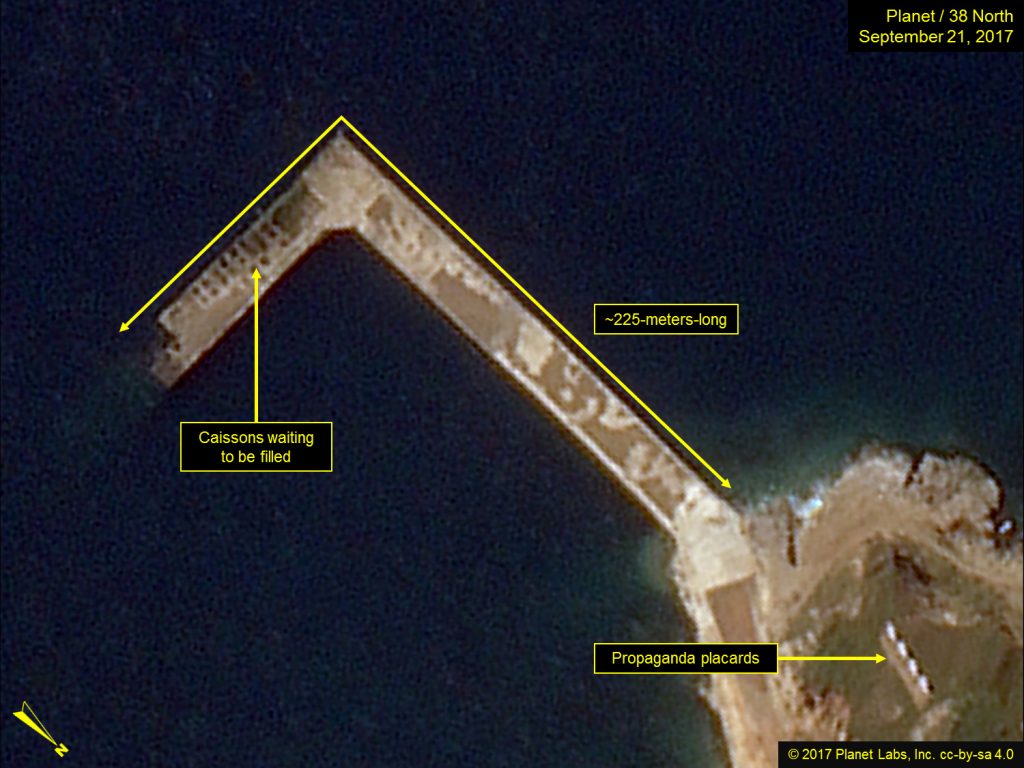

Figure 7. Continued construction of L-shaped pier.

Image © 2017 Planet Labs, Inc. cc-by-sa 4.0

Since 2015 the port and associated facilities at Nopyong-ni, located on the west side of the Yuktaeso-ri Peninsula, have been undergoing a significant modernization and rebuilding program. This program is continuing and progress is observable in the current imagery. Whether this modernization program is related to the future development and deployment of a ballistic missile submarine capability is unknown.

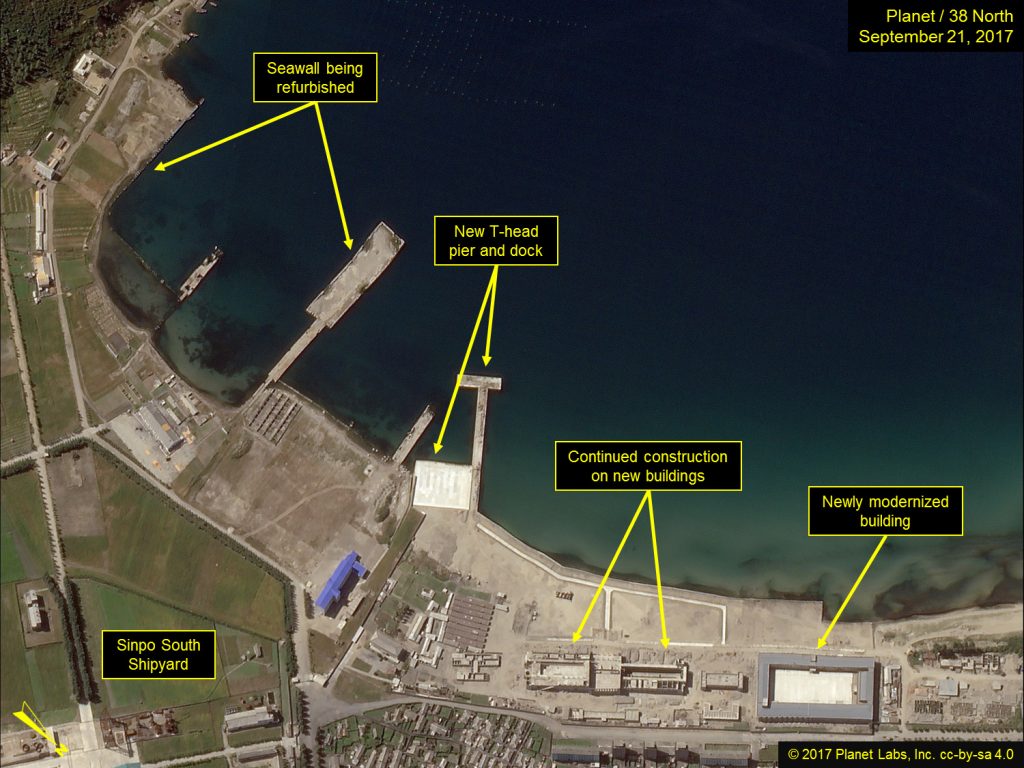

Figure 8. Ongoing activity at port and facilities at Nopyong-ni.

Image © 2017 Planet Labs, Inc. cc-by-sa 4.0

  1. [1]

    Referred to as GORAE-class by South Korean sources.

  2. [2]

    Netting has been employed by North Korea on a number of occasions to conceal activity from both ground and overhead (i.e., satellites, etc.) observation. It has also been used in deception operations.

  3. [3]

    “US detects ‘highly unusual’ North Korean submarine activity,” CNN, July 31, 2017, http://www.cnn.com/2017/07/31/politics/north-korea-ejection-test-submarine-activity/index.html; and “N. Korea conducts SLBM ejection test,” Yonhap, August 1, 2017, http://english.yonhapnews.co.kr/national/2017/08/01/23/0301000000AEN20170801007100315F.html.
