Destruction at North Korea’s Nuclear Test Site: A Review in Photos

On May 24, North Korea invited a delegation of international journalists to the Punggye-ri Nuclear Test Site to document the destruction of its tunnels and buildings at the facility. A preliminary review of emerging images bring some insights into North Korea’s nuclear weapons testing regime.

Figure 1. Punggye-ri Nuclear Test Site map as presented by DPRK overlain on Google Earth overview of the facility.
(Image: Google Earth, annotation by 38 North.)

Figure 2. Overview of the Punggye-ri nuclear test site showing camera and journalist viewing positions around the site for observing the destruction of portals and support buildings.

Image © 2018 DigitalGlobe, Inc. All rights reserved. For media licensing options, please contact [email protected]

Figure 3. The South Portal area showing possible location for introductory remarks by Deputy Director of North Korea’s Institute for Nuclear Weapons.

Image © 2018 DigitalGlobe, Inc. All rights reserved. For media licensing options, please contact [email protected]

Figure 4. Deputy Director of the North Korean Nuclear Weapons Institute giving introductory remarks.

(Source: KCNA / CNN)

Figure 5. Remarks conducted near the North Portal feature a schematic map of tunnels and six test locations.

(Source: KCNA / CNN)

Figure 6. Introductory remarks near the North Portal feature a schematic map of tunnels and six test locations on a detailed topographic map. The map appears to be a to scale schematic and the locations appear to be very precise and correlate well with most remotely derived geolocations for all tests—they are identified in sequence as shown numbered one through six. However, the map does not appear to be a detailed engineering diagram (layout) of the tunnels.

There is no suggestion of zig-zags or a fish-hook terminus at the end of each drift. The map does corroborate closely with seismic and imagery analysis of the test geolocations and tunnel directions. There is no indication of a secondary portal in the South Portal Area.

(Michael Greenfield, Sky News)

Figure 7. Close-up of North Korean map of Punggye-ri.

(Source: CNN)

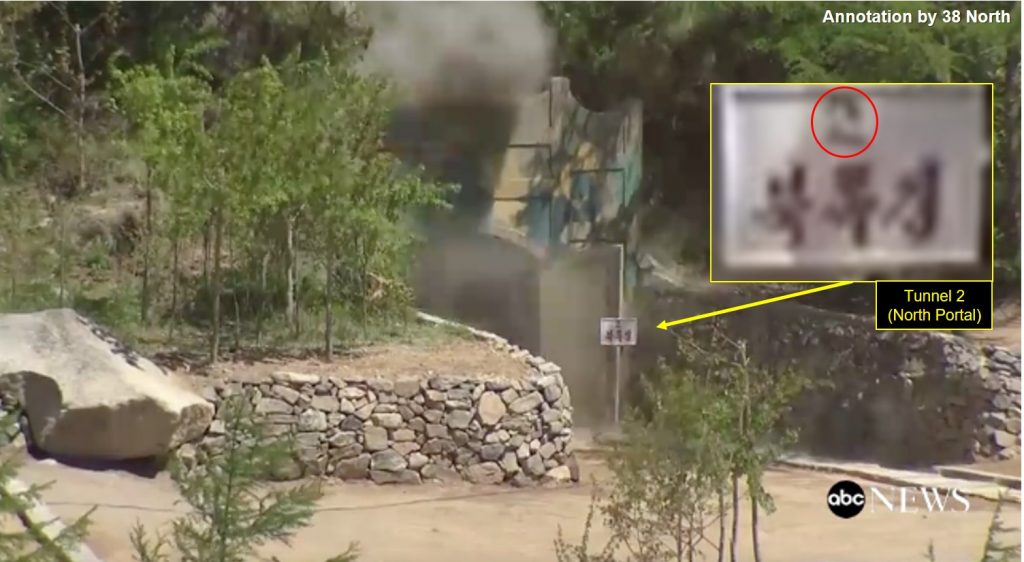

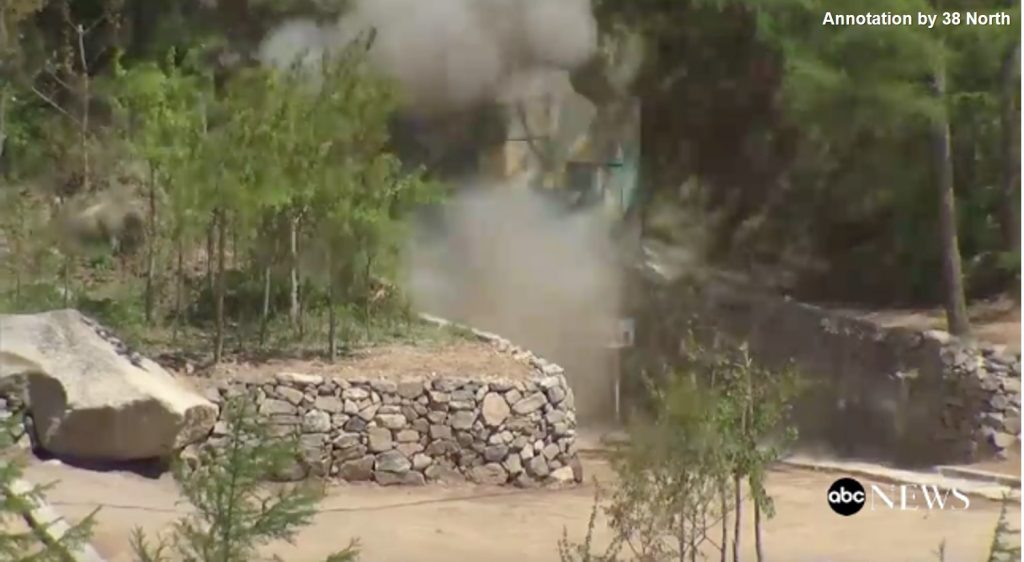

Figures 8 & 9. A look at the North Portal, Tunnel #2 being blown up. (Source: ABC News)

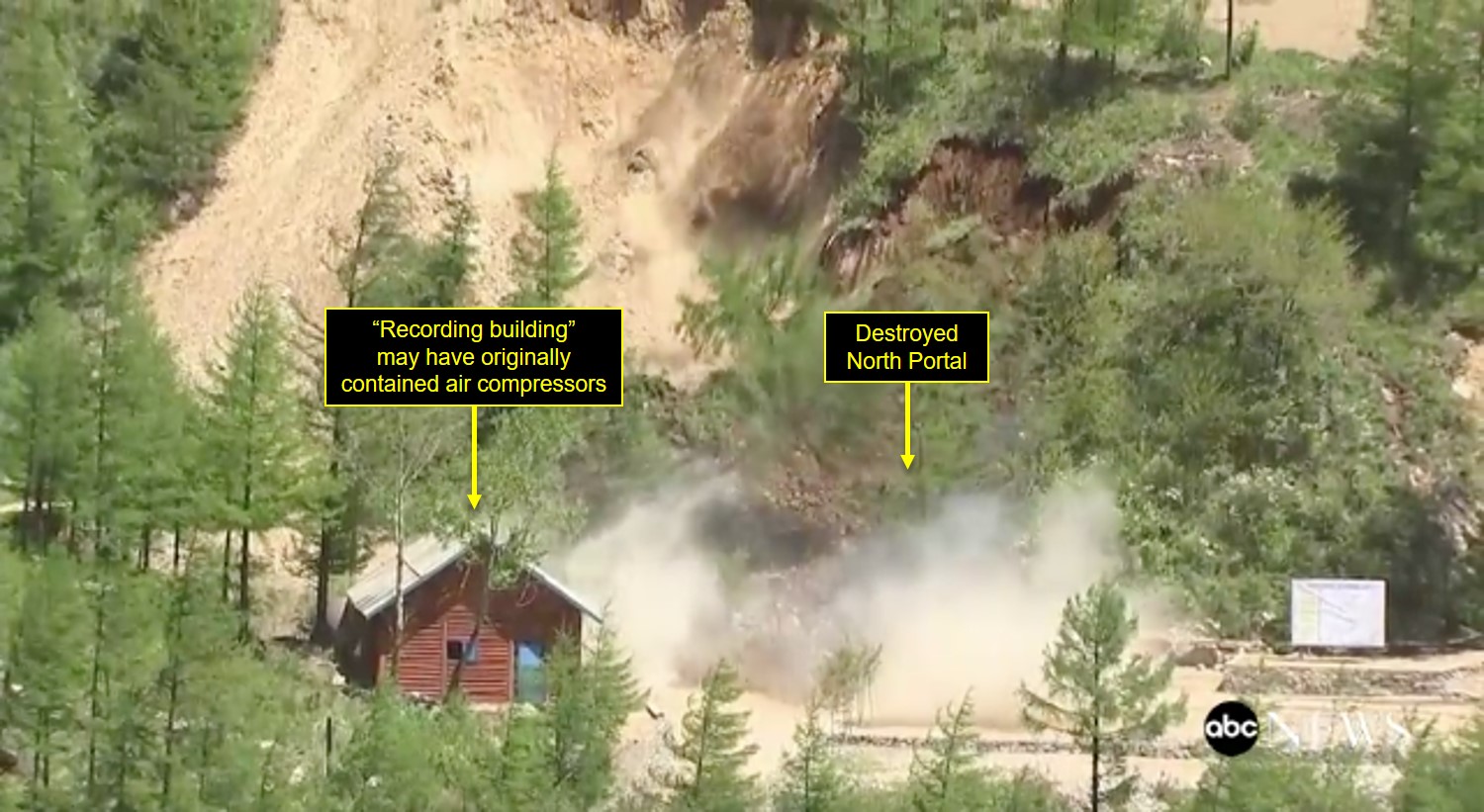

Figure 10. Another perspective of the destroyed North Portal.

(Source: ABC News)

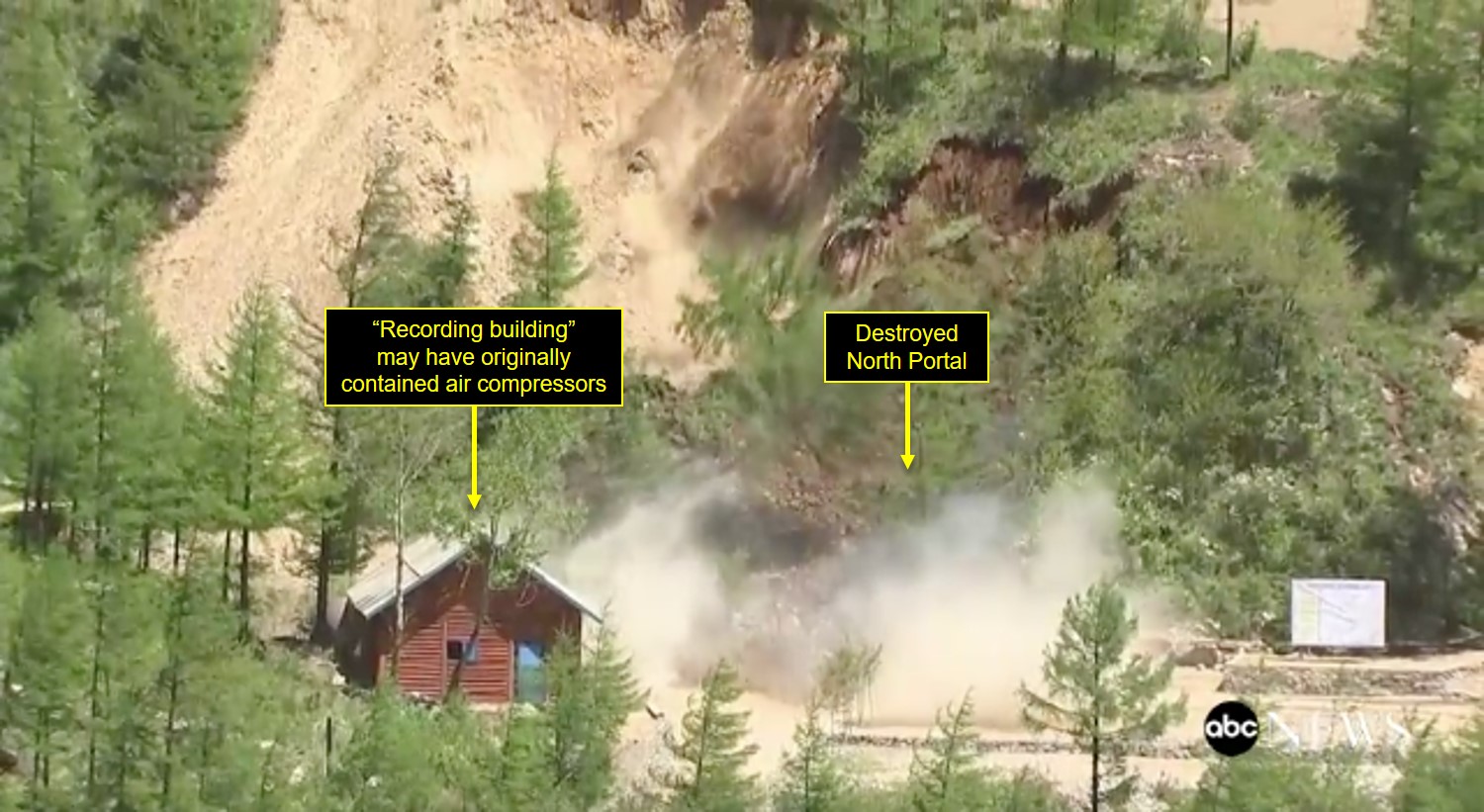

Figure 11. A farther away look at the destroyed North Portal.

(Source: ABC News)

Figure 12. A close-up look at the North Portal.

(Source: CNN)

Figure 13. A close-up of the South Portal.

(Source: Xinhua)

Figure 14. Inside the North Portal tunnel at the Punggye-ri nuclear test facility.

(Source: Xinhua)

Figure 15. Destruction of the South Portal at the Punggye-ri nuclear test facility from the lower east side camera position.

(Source: KCNA / CNN)

Figure 16. Destruction of major buildings in the Main Administrative Area as observed from the upper east side of the valley camera position.

(Source: CNN)

Figure 17. Main Administrative Area at Punggye-ri prior to detonation.

(Source: ABC News)

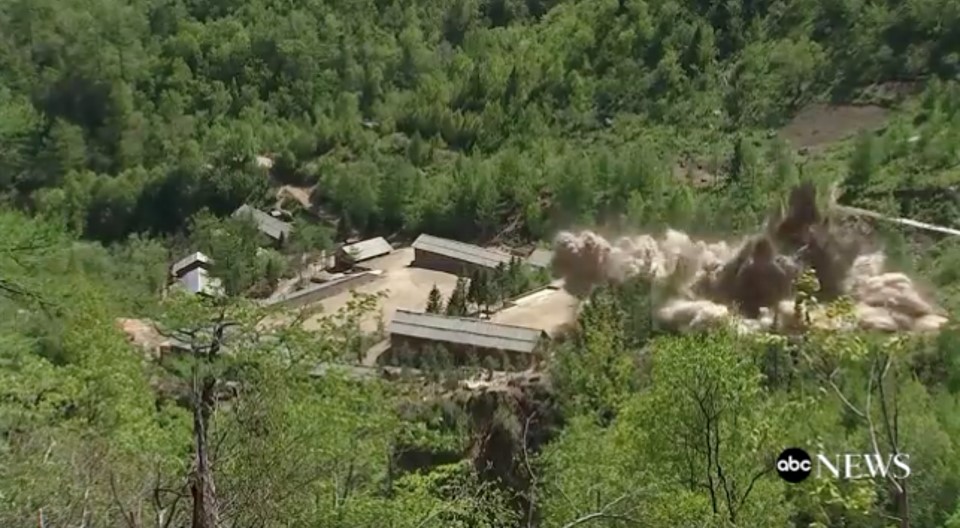

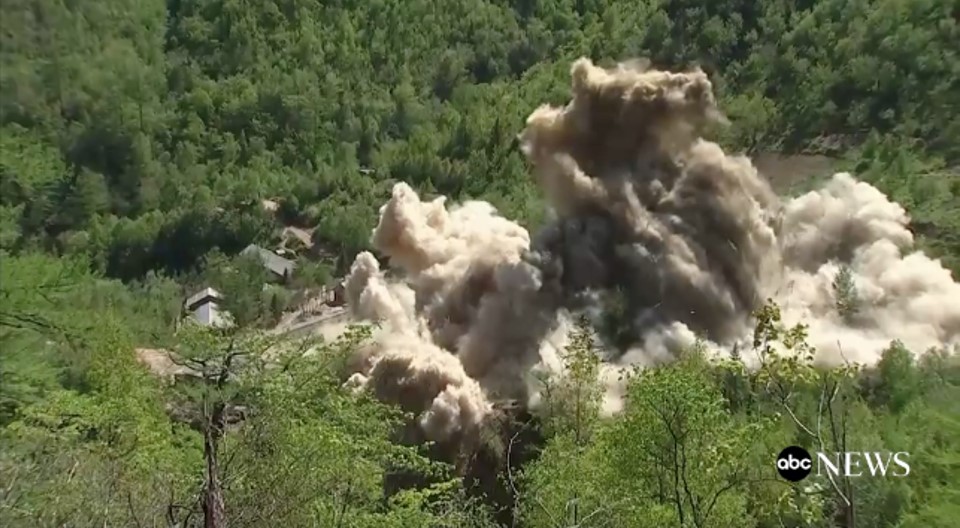

Figures 18 & 19. Destruction of the Main Administrative Area at Punggye-ri. (Source: ABC News)

Figure 20. Outside the West Portal, with a camouflaged entrance and doors. Note the log terracing above the portal.

(Source: KCNA / CNN)

Figure 21. Another perspective of the West Portal, with a camouflaged entrance and doors.

(Source: Michael Greenfield, Sky News)

Figure 22. West Portal destruction at Punggye-ri.

(Source: ABC News)

Figure 23. Further destruction of West Portal at Punggye-ri.

(Source: ABC News)
