North Korea’s Sinpo South Shipyard: Submarine Shipbuilding Continuing at Slow Pace

A 38 North exclusive with analysis by Jack Liu, Peter Makowsky and Jenny Town

Recent commercial satellite imagery of North Korea’s Sinpo South Shipyard indicates that building of a submarine ongoing for several years—possibly a follow-on to the current SINPO-class experimental ballistic missile submarine—is continuing. On March 23, probable submarine hull sections, as well as several pieces of equipment, parts and supplies, were seen in the yard adjacent to the Sinpo construction halls. By April 5, the hull sections were gone, and only minor movement of parts is observed in subsequent images.

Figure 1. Probable submarine hull sections observed in the parts yard adjacent to the construction halls.

Figure 1A. Probable submarine hull sections observed in the parts yard adjacent to the construction halls, March 23, 2019. Image Pleiades © CNES 2019, Distribution Airbus DS. For media options, please contact [email protected]
Figure 1B. Probable submarine hull sections gone in the parts yard adjacent to the construction halls, April 5, 2019. Image Pleiades © CNES 2019, Distribution Airbus DS. For media options, please contact [email protected]
Figure 1C. Movement of parts observed in the parts yard adjacent to the construction halls, April 11, 2019. Image Pleiades © CNES 2019, Distribution Airbus DS. For media options, please contact [email protected]

Imagery also indicates that the vertical test stand—used for ejection testing of sea-launched ballistic missiles—was rolled back from its support structure between March 23 and April 5, leaving the launcher strong back (which has a grid-like structure) in its raised position. The launcher and support structure were reunited by April 11. The purpose of this activity is unclear, but no vehicles, cranes or equipment were on or near the pad during this time, suggesting it was likely not missile-test related.

Figure 2. Movement of the vertical test stand observed.

Figure 2A. Test stand with support structure in place, March 23, 2019. Image Pleiades © CNES 2019, Distribution Airbus DS. For media options, please contact [email protected]

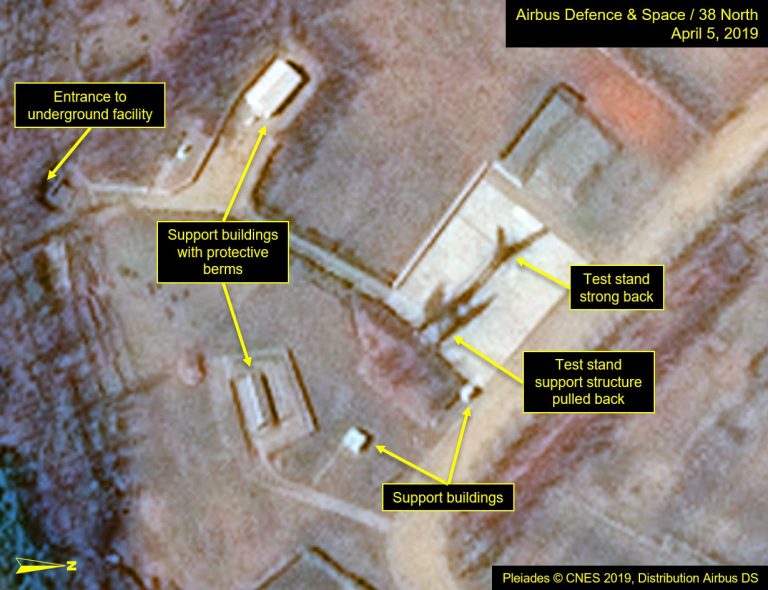

Figure 2B. Test stand support structure pulled back, April 5, 2019. Image Pleiades © CNES 2019, Distribution Airbus DS. For media options, please contact [email protected]

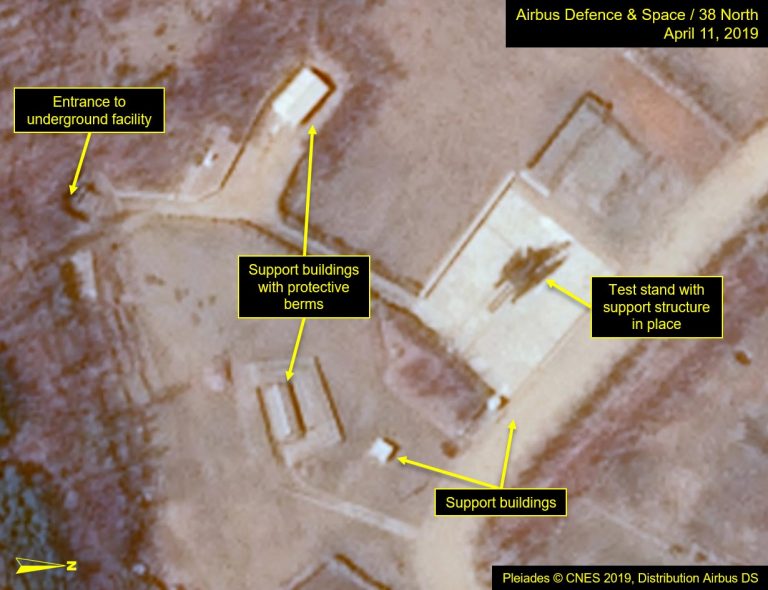

Figure 2C. Test stand support structure in place, April 11, 2019. Image Pleiades © CNES 2019, Distribution Airbus DS. For media options, please contact [email protected]

At the secure boat basin, there was no movement of the SINPO-class ballistic missile submarine and submersible launch barge from March 23 to April 11. However, imagery from April 11 shows floating cranes just outside the secure perimeter working on submerged objects and a possible cable laying ship berthed nearby.

Figure 3. No movement of the SINPO-class experimental ballistic missile submarine or submersible test barge.

Figure 3A. No movement at secure boat basin, March 23, 2019. Image Pleiades © CNES 2019, Distribution Airbus DS. For media options, please contact [email protected]
Figure 3B. No movement at secure boat basin, April 5, 2019. Image Pleiades © CNES 2019, Distribution Airbus DS. For media options, please contact [email protected]
Figure 3C. Floating cranes visible at secure boat basin, April 11, 2019. Image Pleiades © CNES 2019, Distribution Airbus DS. For media options, please contact [email protected]

Construction of the new construction/maintenance hall and L-shaped pier on the west side of the Yuktaeso-ri (Sinpo) Peninsula, which began in 2012, continues slowly.

Figure 4. Construction continues on the new construction/maintenance hall and L-shaped pier.

Image Pleiades © CNES 2019, Distribution Airbus DS. For media options, please contact [email protected]
