North Korea’s Sinpo South Shipyard: Recent Activity

A 38 North exclusive with analysis by Jack Liu and Jenny Town

Corrections have been made to Figure 4, which mislabeled the floating crane on the side of the secure boat basin as the submersible test barge. Although difficult to determine conclusively, the submersible test barge appears to be berthed under the awning. Additionally, discussion by Dave Schmerler provided clarification about what is likely a truck crane parked on the quay. Article updated 10.02.19.

Recent commercial satellite imagery of North Korea’s Sinpo South Shipyard from August 26 and September 23 indicates that construction continues on a new ballistic missile submarine (SSB). Previous reports have suggested that the submarine is nearing completion, given the recent construction of a retractable awning that could be intended to conceal the new boat. That may prove to be true, however, the awning may also be intended to improve concealment of activity related to the existing SINPO-class submarine or any vessel and, therefore, is not a reliable indicator of the imminent launch of a new boat.

The presence of a cylindrical canister and support vehicles near the submersible test barge berthed at the secure boat basin strongly indicates that preparations are underway for the testing of a dummy round from its missile launch ejection system. This test is routinely done prior to actual missile launches, to ensure that the missile can be ejected at the proper speed and angle before committing to ejection and launch from the submarine.

There is still uncertainty about the type of submarine actually under construction at Sinpo. Photos released with reports of Kim Jong Un’s visit to the Sinpo South Shipyard on July 23 suggest that the submarine inspected by Kim was a modified ROMEO-class design,[1] not the SINPO-C class ballistic missile submarine widely believed to be under construction.

The size of the construction hall could support building an additional submarine although there is no evidence to suggest that activity is underway. This does raise several possibilities, however. Pyongyang may have decided not to move forward with building the SINPO-C class submarine. Or it may have started building the SINPO-C, but ran into problems and focused on a modified ROMEO-class submarine instead in order to be able to show progress in submarine development. A final possibility is that it may be building both the ROMEO and SINPO-C class submarines simultaneously. Regardless, North Korea appears to be working to establish a credible submarine-launched ballistic missile (SLBM) capability.

Kim Jong Un visits the Sinpo construction halls with the new submarine, 2019. (Photo: KCTV via Martyn Williams)

Construction and Canister Ejection Test Preparation

The movement of parts and equipment to and from the parts yard adjacent to the construction hall indicates construction on the new ballistic missile submarine has continued since Kim Jong Un’s reported visit. While this doesn’t negate assertions that the North may be launching the submarine soon, the retractable awning in the secure boat basin can conceal any additional work that may be done to fit out the boat once it is in the water, helping to maintain ambiguity.

Figure 1. Overview of the construction halls and parts yard at Sinpo South Shipyard, August 26, 2019.

Image Pleiades © CNES 2019, Distribution Airbus DS. For media options, please contact [email protected]

Figure 2. Movement of parts and equipment observed at the parts yard adjacent to the construction halls.

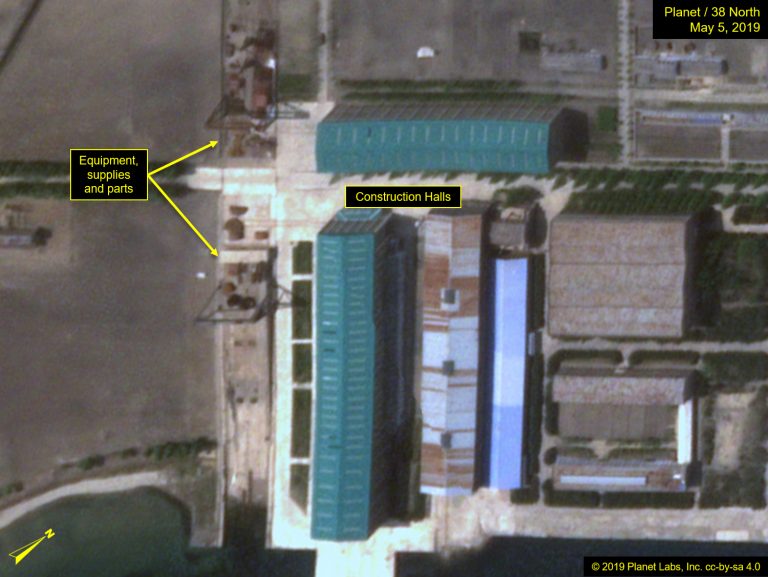

Figure 2A. Overview of the movement of parts at the adjacent yard to Sinpo’s construction halls, May 5, 2019. Image © 2019 Planet Labs, Inc. cc-by-sa 4.0.

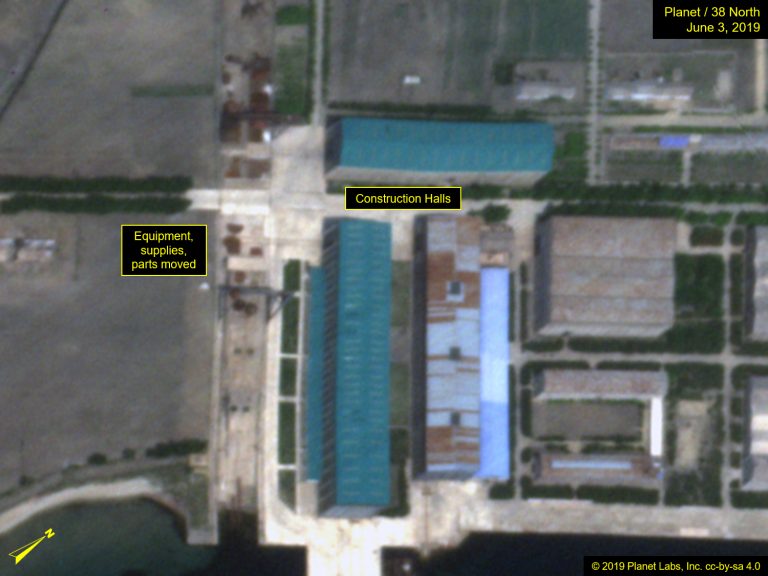

Figure 2B. Overview of the movement of parts at the adjacent yard to Sinpo’s construction halls, June 3, 2019. Image © 2019 Planet Labs, Inc. cc-by-sa 4.0.

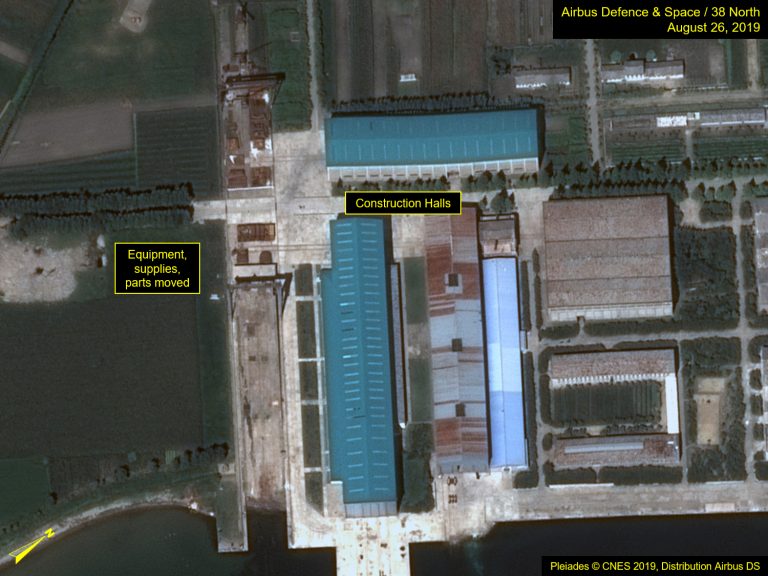

Figure 2C. Overview of the movement of parts at the adjacent yard to Sinpo’s construction halls, August 26, 2019. Image Pleiades © CNES 2019, Distribution Airbus DS. For media options, please contact [email protected]

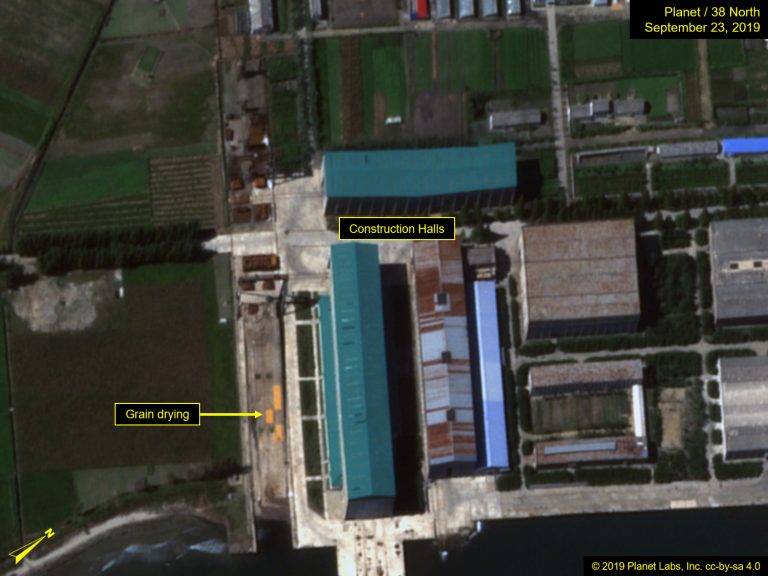

Figure 2D. Overview of the movement of parts at the adjacent yard to Sinpo’s construction halls, September 23, 2019. Image © 2019 Planet Labs, Inc. cc-by-sa 4.0

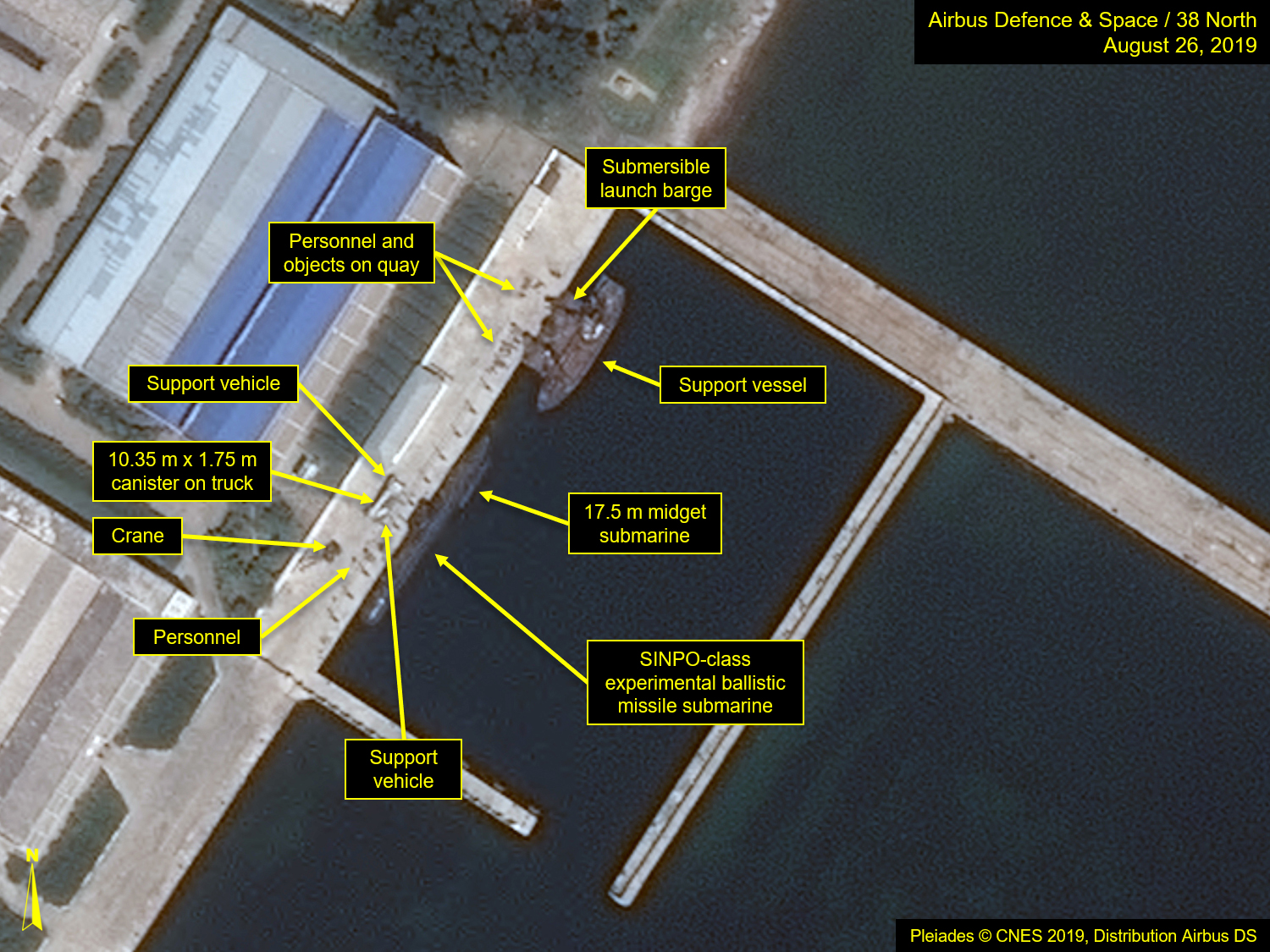

Imagery from August 26 shows the presence of four vessels berthed at the secure boat basin: the submersible barge used for underwater launch testing, a support vessel, a 17.5-meter-long midget submarine and the SINPO-class experimental ballistic missile submarine (SSBA). Personnel and objects are observed on the quay near both the submarine and the barge along with a crane and a 10.35 m x 1.75 m cylindrical canister on a truck with two support vehicles on both sides.

Figure 3. Overview of the secure boat basin, four vessels present on August 26.

In imagery from September 23, the cylindrical canister and associated support equipment now appear on the submersible test barge along with support vessels. The canister transport truck and crane are still on the quay. These activities suggest that preparations for a pop-up ejection test are likely underway. The retractable awning conceals a submarine berthed at the secure boat basin, although the bow marking suggests it is still the SINPO-class experimental ballistic missile submarine.

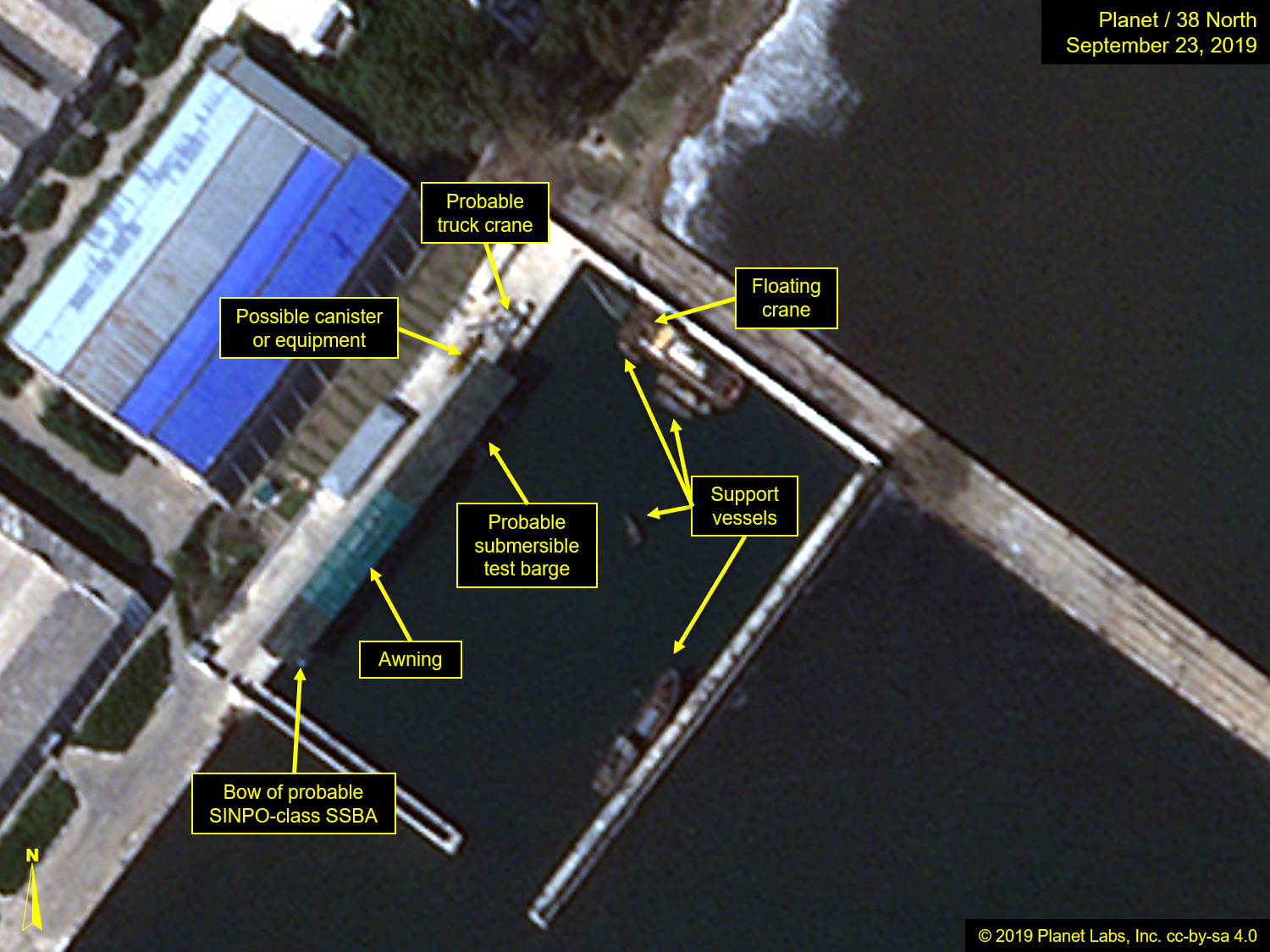

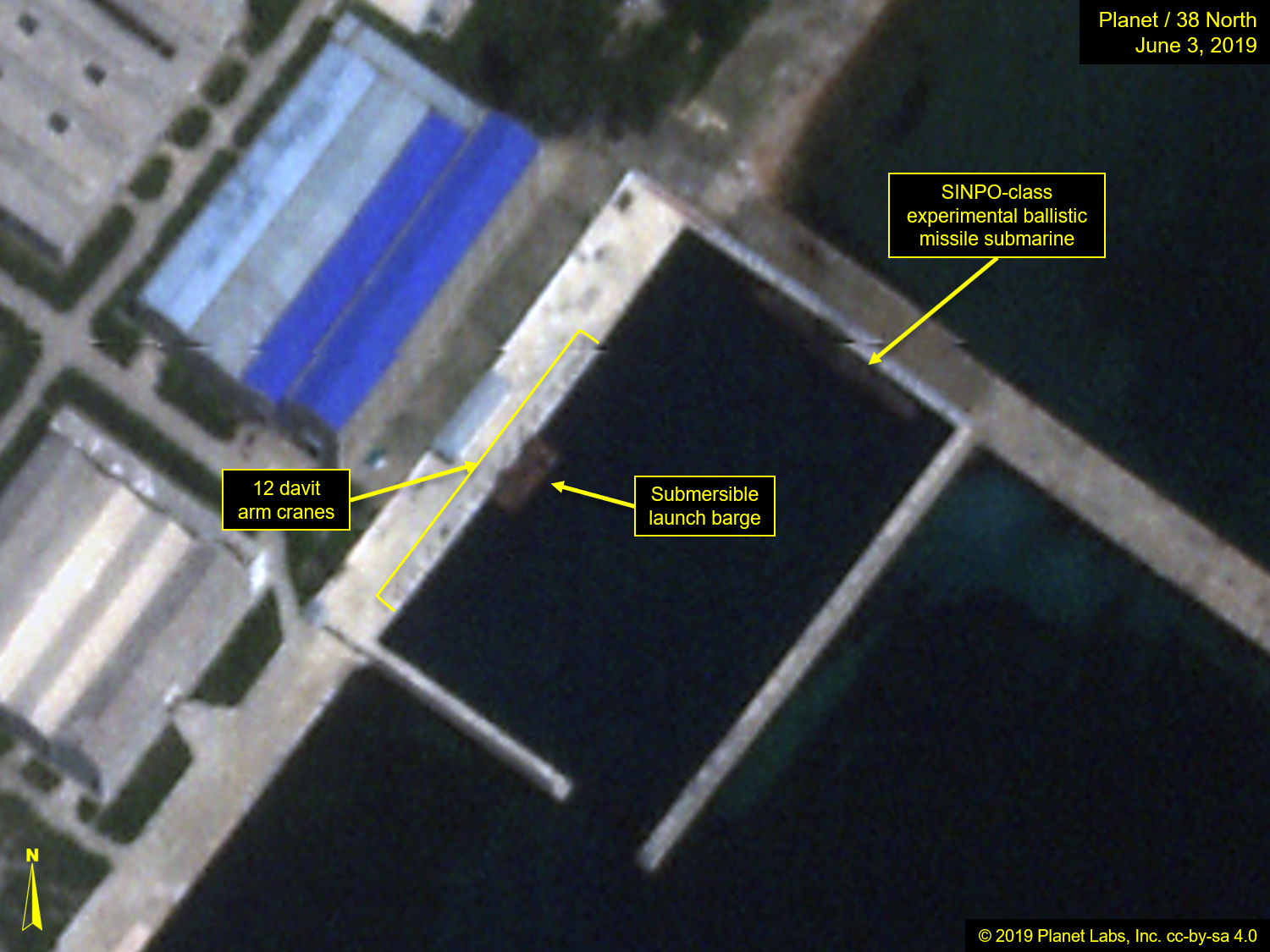

Figure 4. Possible test canister visible, awning conceals a probable submarine at the secure boat basin.

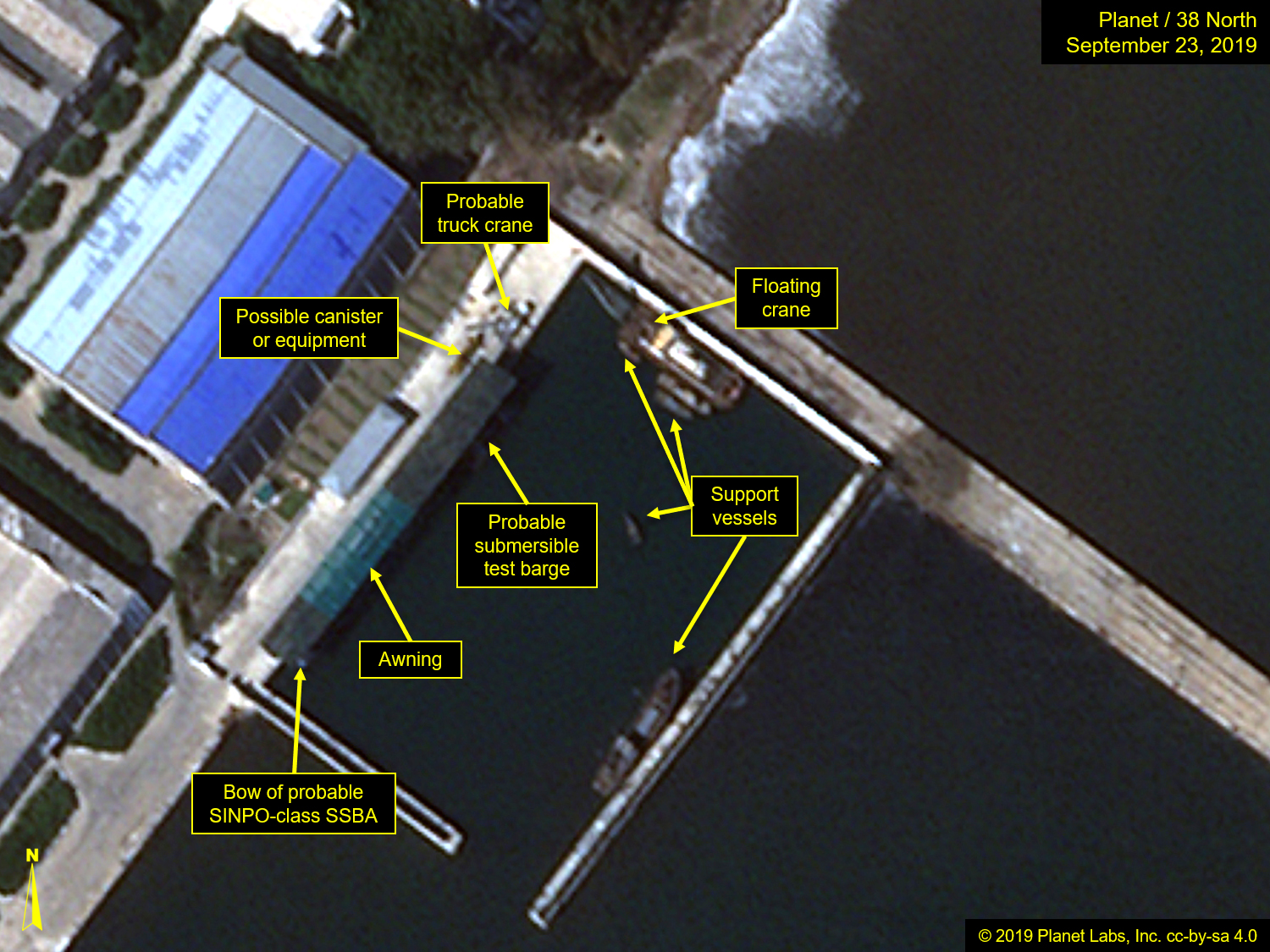

Figure 4. Overview of secure boat basin, retractable awning and test canister visible. Image © 2019 Planet Labs, Inc. cc-by-sa 4.0.

Details

Dimensions of the Pukguksong-1 missile. (Photo: GlobalSecurity.org)

The Pukguksong-1 missile is believed to be 8.6 m long and 1.5 m in diameter.

The use of an integrated missile-launch canister would be a significant improvement over that of a launch tube fixed to the submarine, as is the case with the SINPO-class SSBA, where the bare missile had to be carefully inserted into the tube. Safety, reliability and reload speed are the primary benefits.

Kim Jong Un witnessing the lowering of the Pukguksong-1 into submarine, 2016. (Source: KCTV via Yonhap)

Careful photographic analysis by H.I. Sutton concludes the “new” submarine Kim Jong Un inspected in July is a modification of the decades-old Soviet ROMEO-class conventional submarine. The North Koreans appear to have removed the aft battery compartment to make room for the missile tubes and extended the length, width and height of the sail. Three missiles are the most this configuration can accommodate. It is unclear whether the new SSB is a conversion of one of the remaining active ROMEOs or a refurbishment of a previously inactive hull. (The DPRK is known to have up to 20 ROMEO-class submarines in service.)

There are a few reasons why getting a modified ROMEO operational would enhance North Korea’s naval capabilities, including:

  • The ability to test the effects of launching a sequence of missiles such as buoyancy changes with each launch, missile guidance system initialization issues, getting the boat to stop rocking between launches, etc.;
  • Changing the mission of the ROMEO submarines from attack to SSBs as an inexpensive means to field a fleet; and
  • There may be design/development issues with the SINPO-C.
Detailed cutaway of modified ROMEO submarine. (Source: H.I. Sutton)

However, there is also wide belief that a SINPO-C class SSB is under construction at Sinpo.[2] That view may prove to be wrong, but if it’s true, given the size of the construction hall—210 m long with two launch gangways—it is possible that both the modified ROMEO and the SINPO-C class submarines are currently under construction with the ROMEO being more complete.


  1. [1]

    See: Joseph Trevithick, “North Korea’s New Ballistic Missile Submarine Is A Refurbished Antique (Updated),” The War Zone, The Drive, July 23, 2019, https://www.thedrive.com/the-war-zone/29122/north-koreas-new-ballistic-missile-submarine-is-a-refurbished-antique; and H.I. Sutton, “New North Korean submarine: ROMEO-Mod,” Covert Shores, July 23, 2019, http://www.hisutton.com/ROMEO-Mod_Submarine.html.

  2. [2]

    See: Joseph S. Bermudez Jr., “North Korea’s SINPO-class Sub: New Evidence of Possible Vertical Missile Launch Tubes; Sinpo Shipyard Prepares for Significant Naval Construction Program,” 38 North, January 8, 2015, https://www.38north.org/2015/01/jbermudez010815/; Trevithick, “North Korea’s New Ballistic Missile Submarine Is A Refurbished Antique (Updated),”; and Ankit Panda, “The Sinpo-C-Class: A New North Korean Ballistic Missile Submarine Is Under Construction,” The Diplomat, October 18, 2017, https://thediplomat.com/2017/10/the-sinpo-c-class-a-new-north-korean-ballistic-missile-submarine-is-under-construction/.
