Major Construction at Nampho Port

Commercial satellite imagery indicates a large structure is under construction on one of the repair ways at Nampho Port. While the purpose of the structure is unclear, it is unlike other recent construction efforts and will have the effect of concealing any work taking place within it.

Nampho is North Korea’s largest commercial port and is known for its extensive coal, petroleum, oil and commercial goods import and export facilities. The port is also the site of construction and repair of large, commercial vessels and fishing boats, as well as some of the country’s smaller warships.

The new construction is the latest in a series of changes at the port in the past year and may be related to North Korea’s development of larger warships or cargo vessels. Kim Jong Un disclosed earlier this month that “large surface warships” would be joining the North Korean naval fleet upon visiting a new naval base on the east coast of the country.

Marine Repair Ways

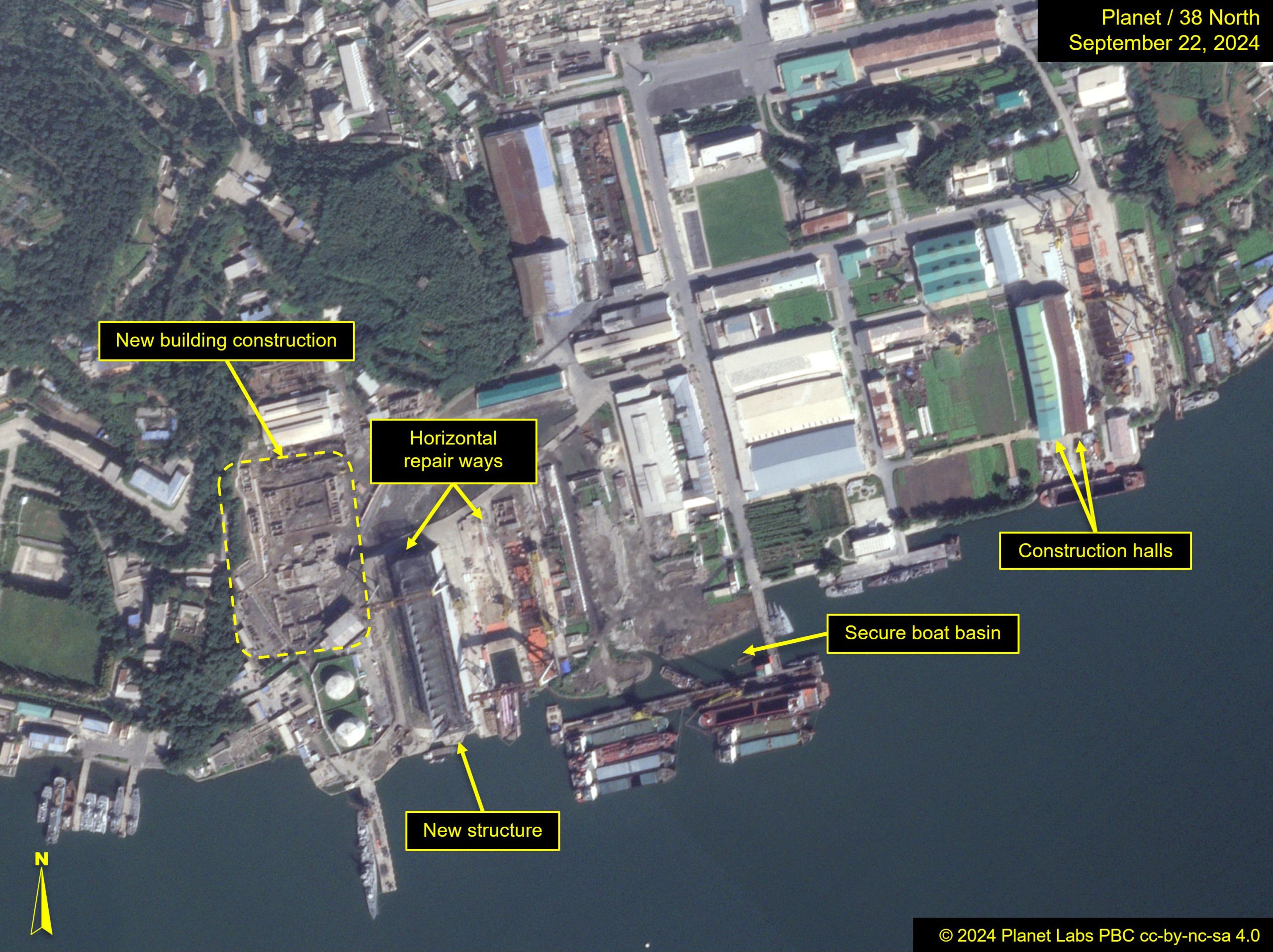

At the center of Nampho Port are two repair ways, both equipped with large gantry cranes to move heavy objects. Originally, one of the repair ways employed a floating drydock to transfer vessels onto the repair way, and the other had an inclined railway to pull the boats out of the water. Construction efforts first began in this area in September 2023. Imagery from late November 2023 shows a seawall was built across the end of the incline at the latter repair way and the area behind it was filled in, suggesting a crane will be required in the future to transfer boats to and from the repair area.

New Structure

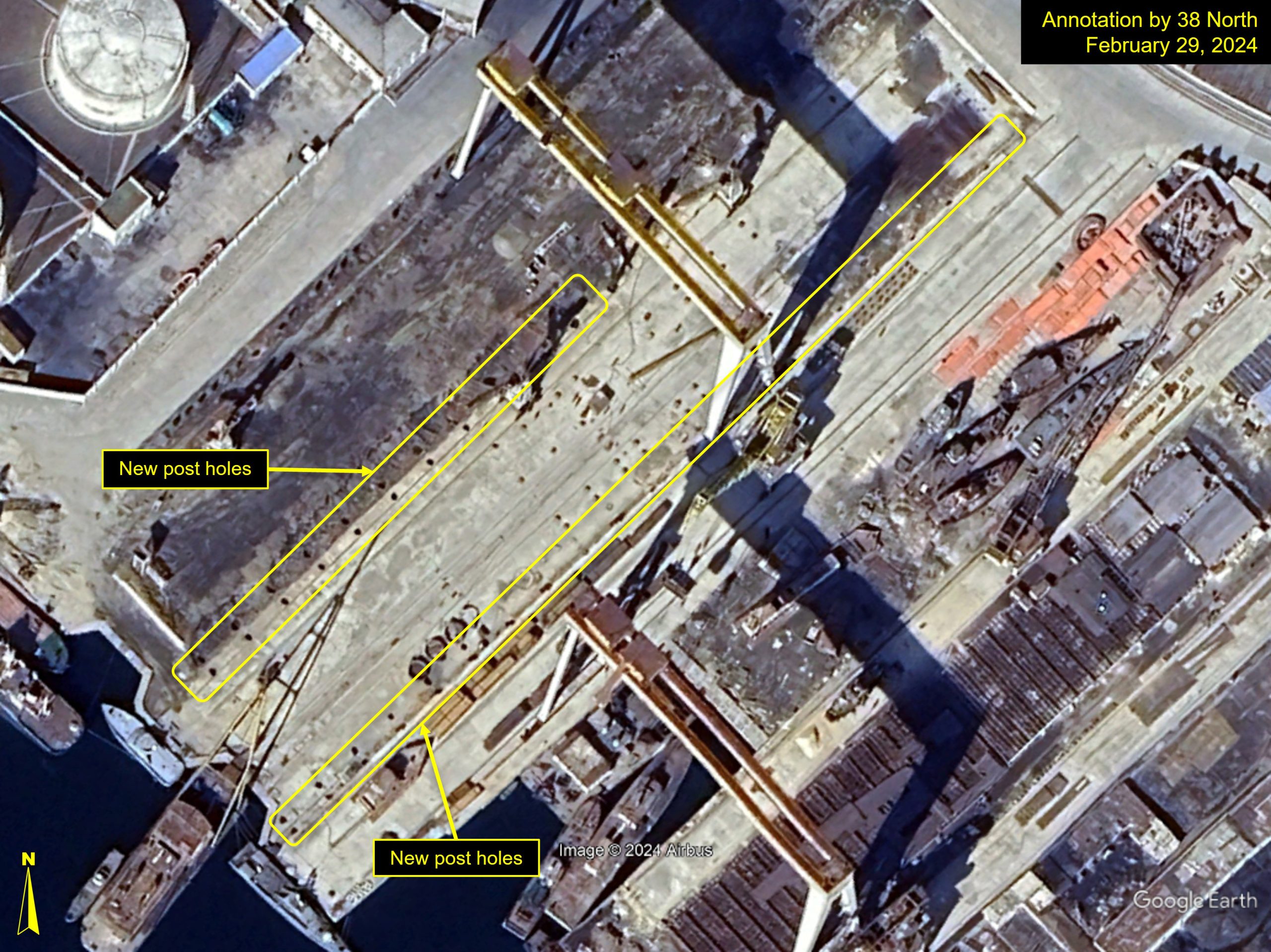

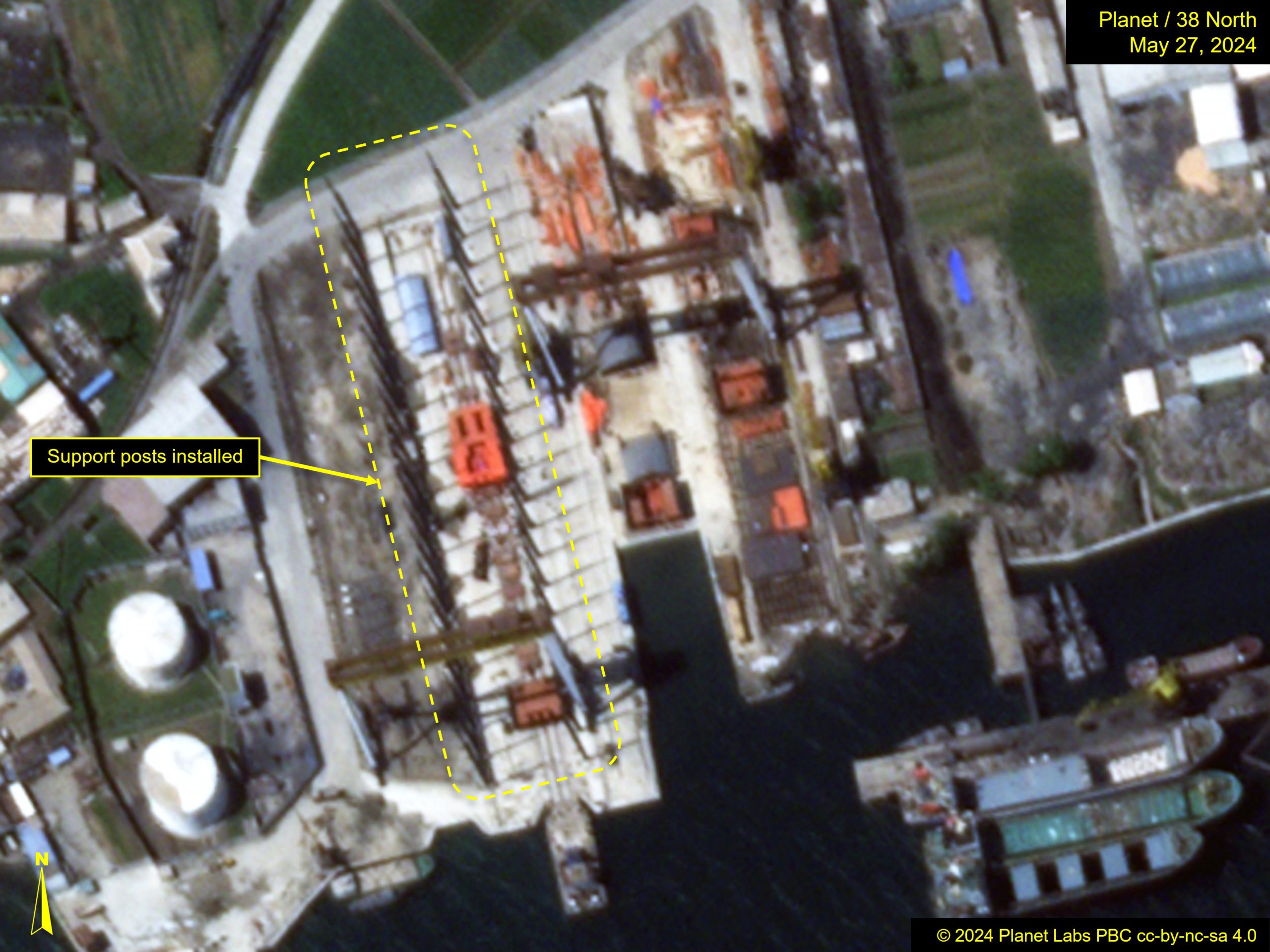

Work on a new structure began in late February 2024 at the other repair way. Imagery from late February 2024 revealed that holes for posts were dug on either side of the building ways. Subsequent imagery from May shows two rows of 20 posts were placed along either side of the rails, spaced equidistantly. The footprint created by the posts covers an approximately 30 by 170-meter area, allowing sufficient space to accommodate a vessel akin to a cruiser-class ship.

Also in May, at least 12 small, rectangular objects were distributed over the length of the rails. These objects are likely trolleys upon which a ship’s keel could rest through construction and roll-out for launch. By mid-June, large metal plates or hull components were moved atop several of the likely trolleys.

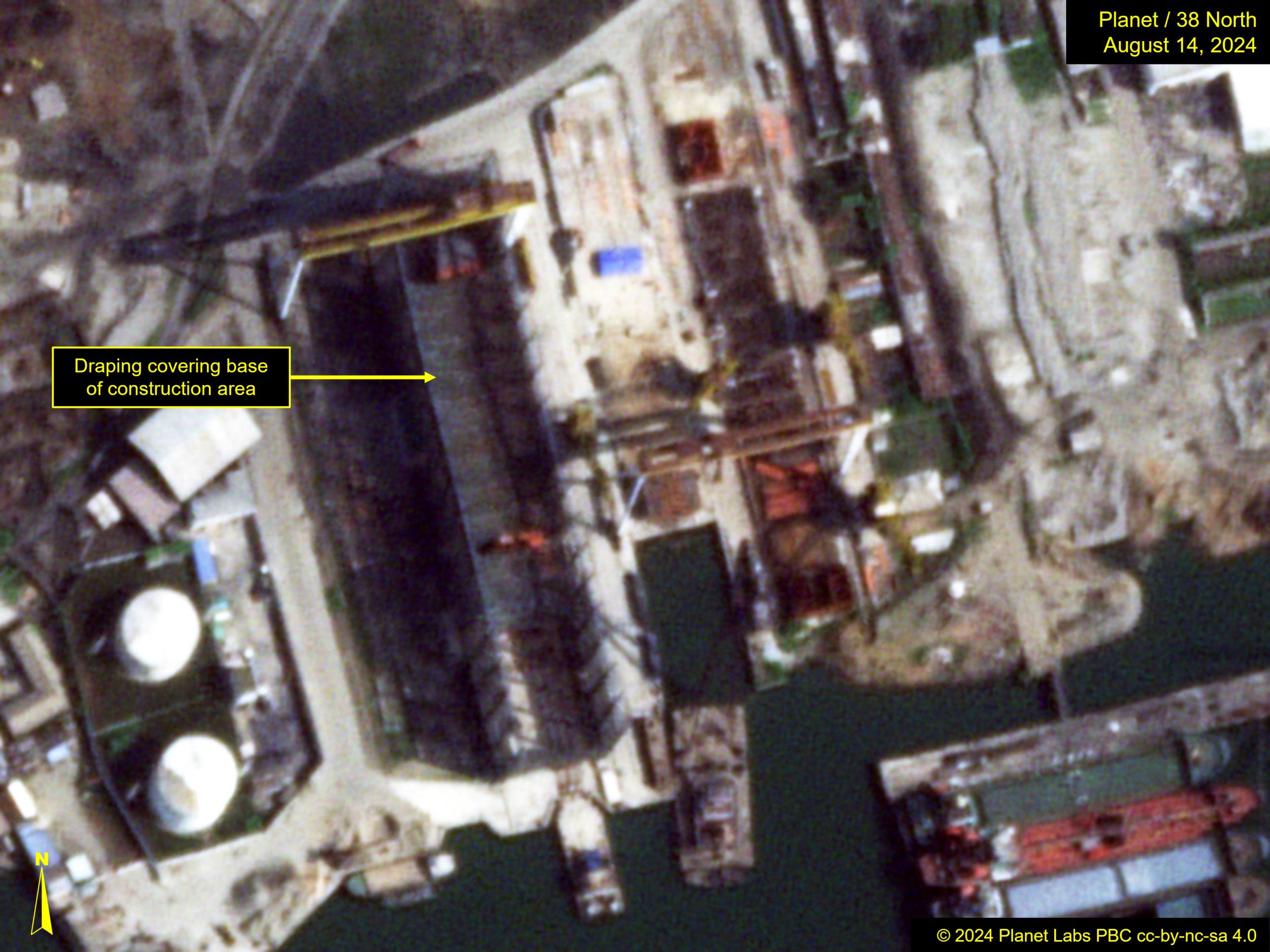

By mid-August, draping was laid across the base of the area between the posts along the structure’s length, covering the objects beneath.

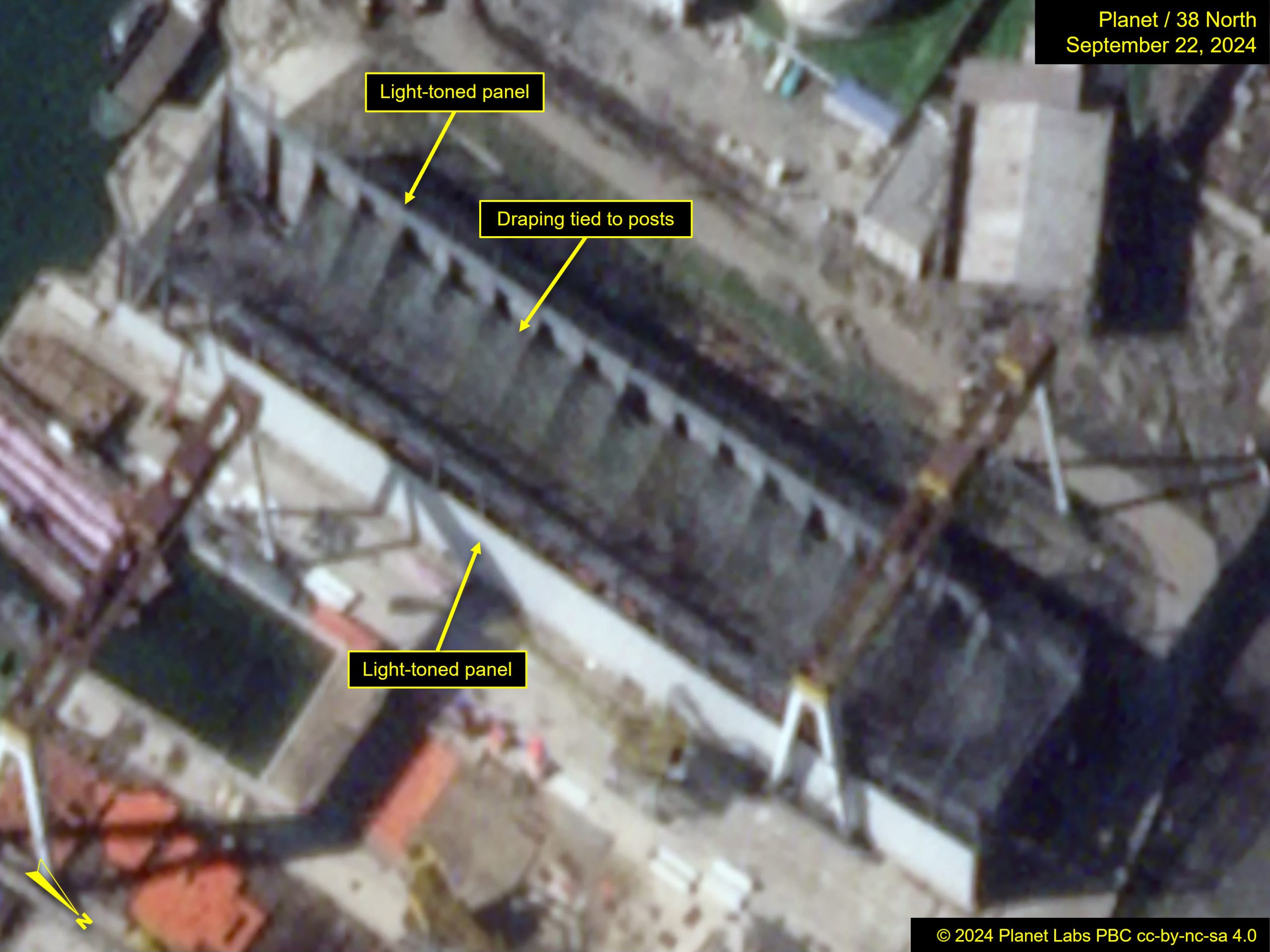

In the latest image from September 22, the drape appears to be tied to posts on either side of the structure. Its size and translucent nature suggest it is likely intended for concealment as opposed to more permanent roofing.

Light-toned panels were raised along all four sides of the structure between September 18 and September 22, enclosing the posts and obstructing views from the outside.

The purpose of the structure is unclear. It could be to provide privacy for whatever will be constructed in the space or ultimately become an enclosed construction or maintenance structure.

The new structure footprint is large enough to house construction of big commercial vessels or military craft. At 30 by 170 meters, it is larger than the existing construction halls at Nampho and approximately the same size as the original construction hall at Sinpho South Shipyard on the east coast. However, Sinpho features a second—newer—construction hall that is larger, at 195 meters by 35 meters.

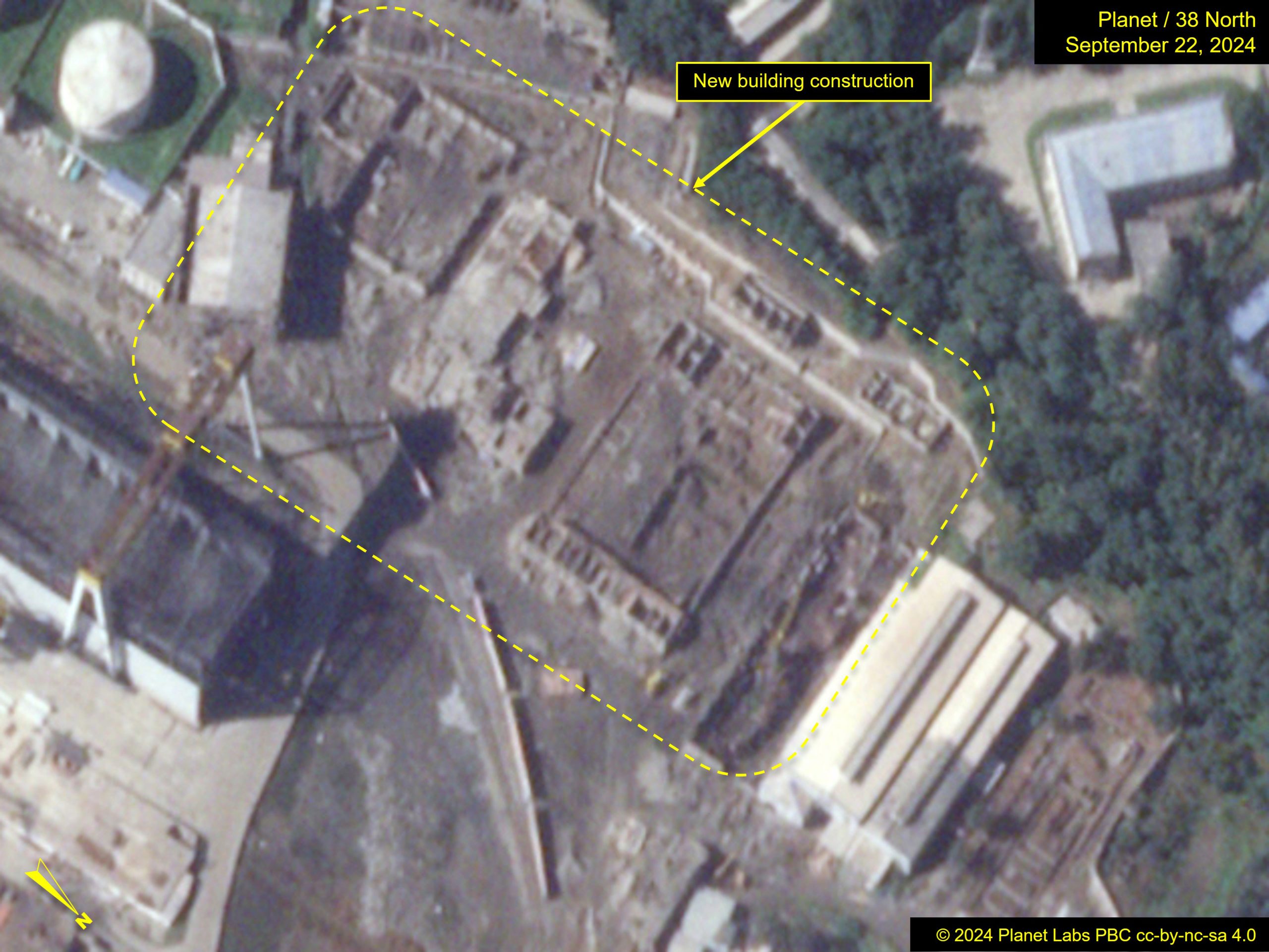

Adjacent to the new structure, a number of smaller buildings have been leveled and replaced with larger building footprints. The proximity to and synchronous timing of activity at the repair way suggest this could be related, but more monitoring is required to confirm this.

Secure Boat Basin

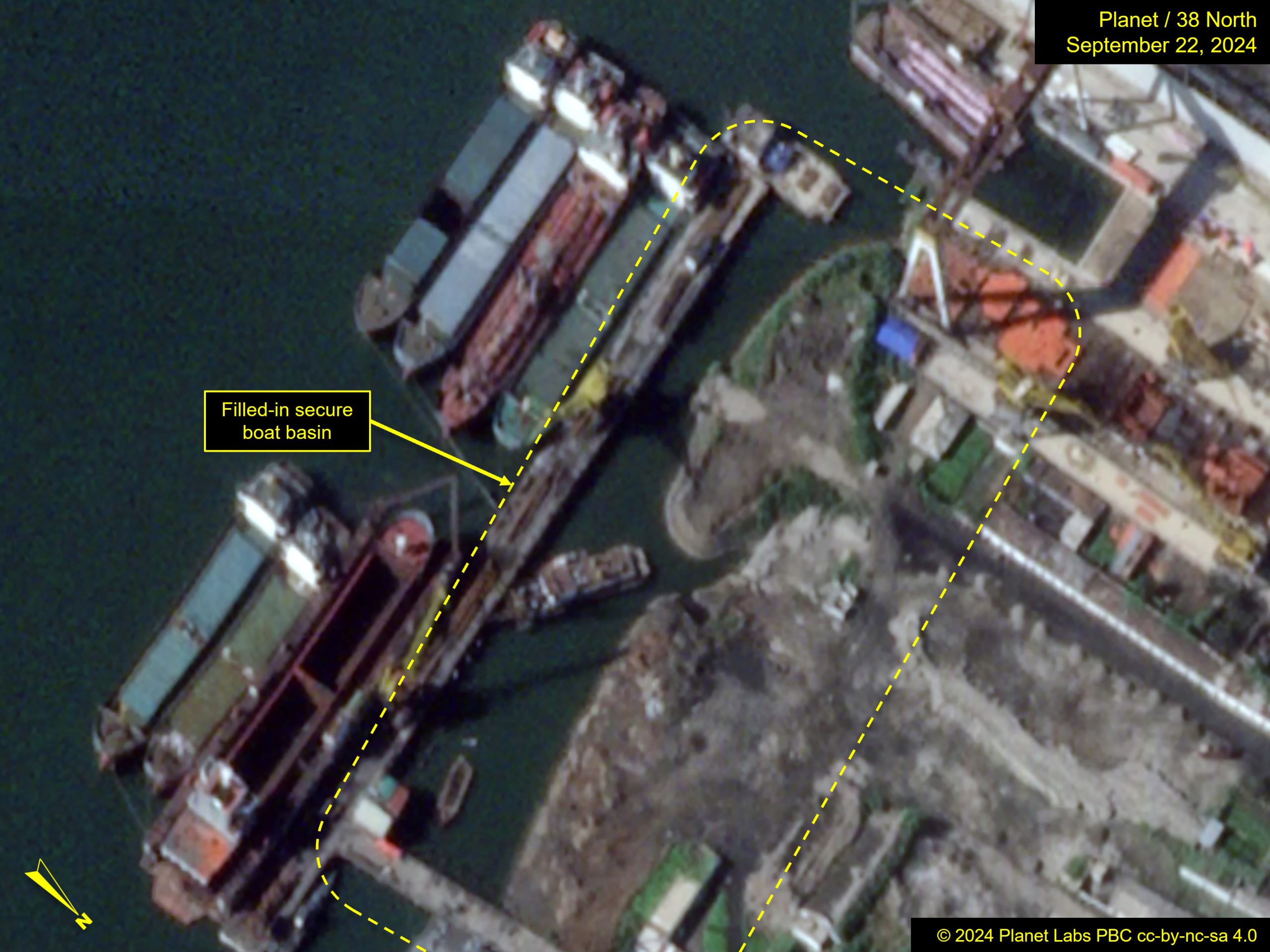

The secure boat basin, which neighbors the central repair ways, is being filled in. The basin has long been home to one of North Korea’s submersible test barges, but it appears it is no longer needed in favor of additional quay space at the port. Approximately half of the basin had already been filled in on imagery from September 22.

Petroleum, Oil and Lubricants (POL) Storage Area

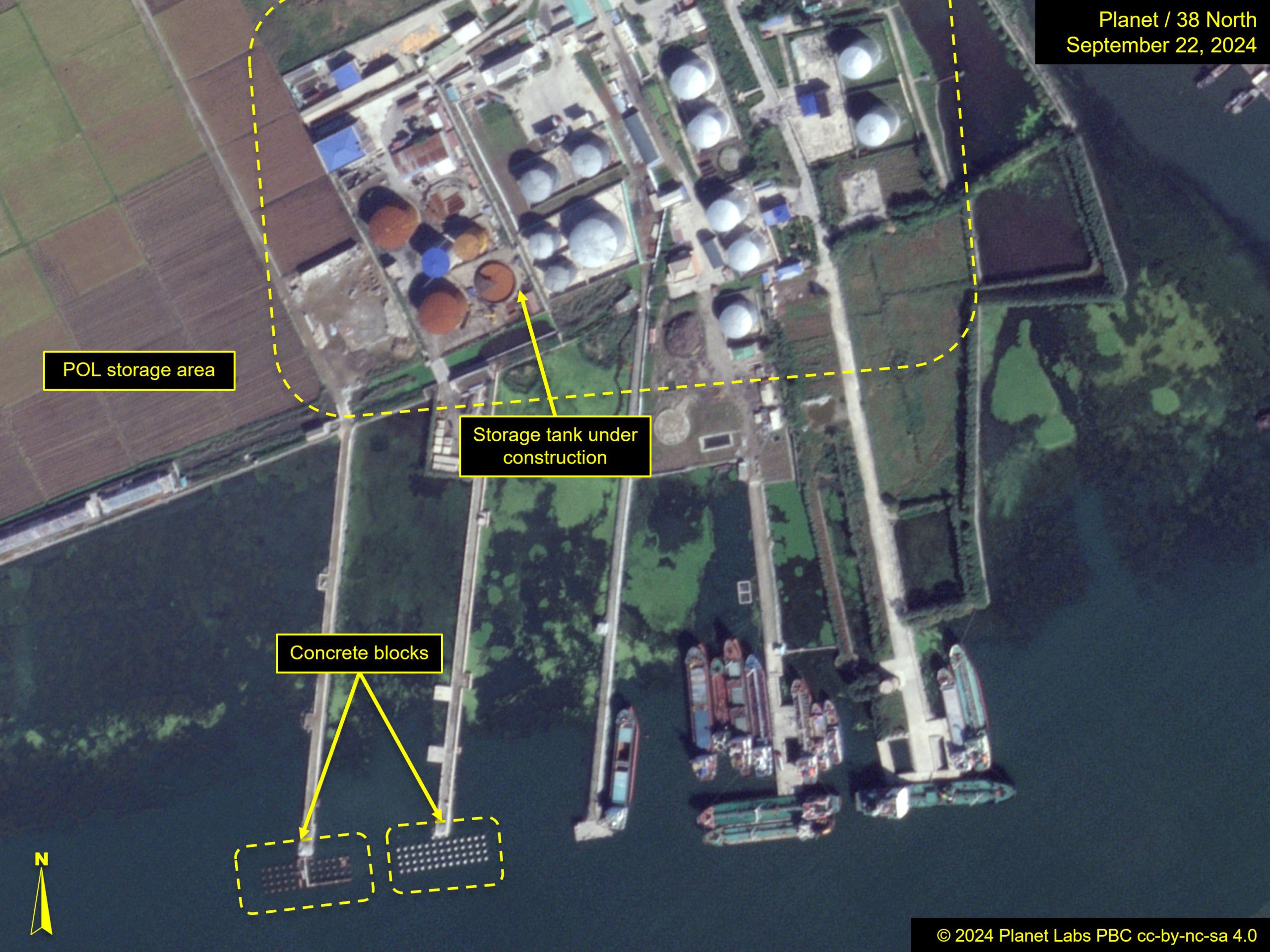

Imagery from September 22 reveals concrete blocks have been positioned in the water at the end of two wharfs at the POL storage area. These blocks suggest small piers will be constructed at the end of the wharfs to ease the docking of ships.

Nearby, construction of a new tank is progressing with a part of the tank roof already installed.
